Nanlux Evoke 5000B 5000W Bi-Colour LED Spotlight Rental Cape Town

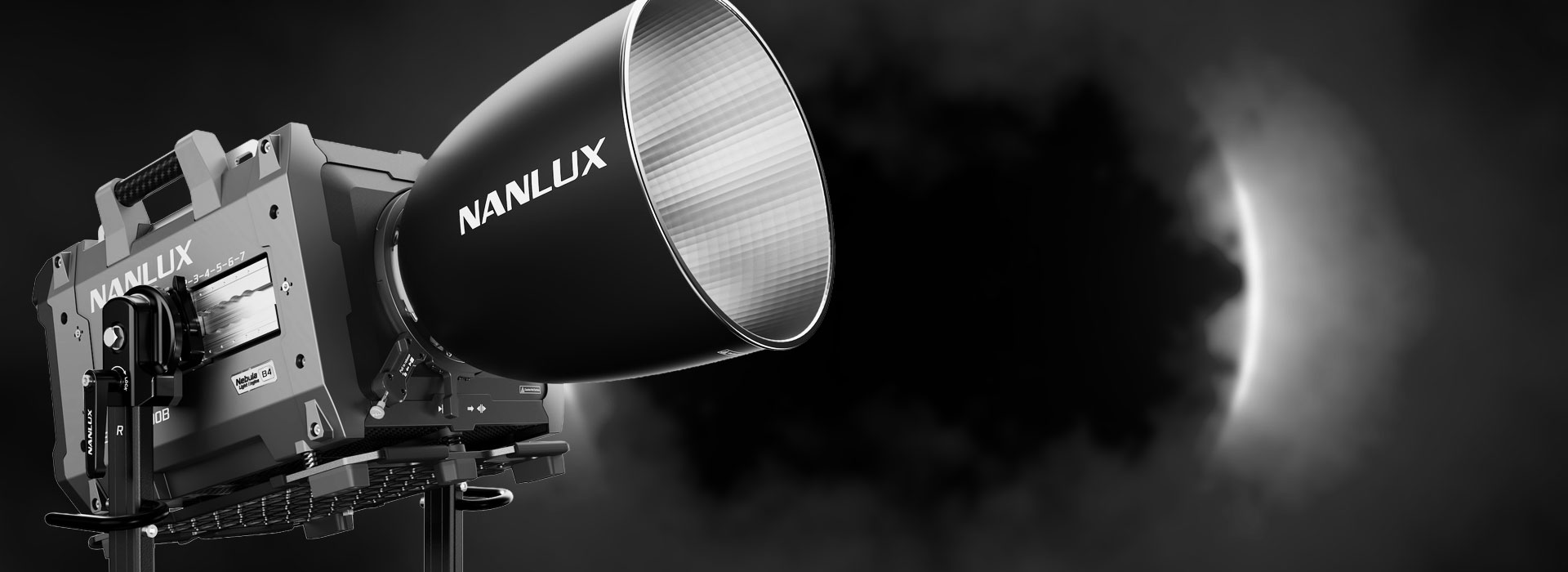

The Nanlux Evoke 5000B represents the zenith of high-output solid-state illumination, packing an extraordinary 5000W LED draw into a single streamlined fixture. Engineered to easily replace traditional 6kW, 9kW, or even 12kW HMI sources, the Nanlux Evoke 5000B delivers unprecedented raw punch for major feature films, television epics, and high-budget commercials across South Africa.

Massive 5kW Point-Source Punch and ±80 Green/Magenta Adjustment

With an adjustable correlated color temperature spanning 2,700K warm incandescent to 6,500K crisp daylight, the Nanlux Evoke 5000B includes precision green-magenta tint tuning (±80) for absolute camera sensor harmony. Acting as the ultimate cinematic key light, it shoots through giant 20x20 diffusion rags or punches natural daylight into cavernous warehouse locations without flicker at high frame rates.

Heavy-Duty Weatherproofing and Intelligent Electronic NL Mount

Designed for demanding outdoor production environments, the Nanlux Evoke 5000B features an all-weather IP-rated sealed alloy chassis that withstands rain, desert sand, and heavy sea spray. The electronic NL mount system communicates directly with optical accessories, including the bundled 30-degree high-intensity reflector. Control is fully integrated via LumenRadio CRMX, dual LAN ports for Art-Net/sACN, 5-pin DMX, and a dedicated wired controller.

Compare with our Nanlux Evoke 2400B and Nanlux Evoke 1200B. View our complete catalog on our products page, see custom setups on solutions, learn about our eco-friendly LED tech on the concept page, contact our Cape Town gear room on contact us, or return home.

Nanlux Evoke 5000B
astera art7 box

Nanlux Evoke 5000B

The Nanlux Evoke 5000B is an incredibly bright single-unit design LED which offers massive output with 5000W power draw and a colour temperature range of 2700K-6500K with ±80 Green/Magenta adjustment. It delivers extreme output with precise colour control in a robust, weather-resistant body.
  • 5000W Fixture head
  • Protective Lens Cap
  • Yoke
  • AC power cable
  • 30° Reflector
  • Wired Controller
  • Flight Case
  • Colour Temperature: 2700K–6500K (+/‑ 80 G/M)
  • CRI / TLCI: ~97 / ~98
  • Rated Power: 5000W (200V–240V) / 5200W (100V–125V)
  • Beam Angle: ~95° (without modifier)
  • Housing: Magnesium alloy, IP66 rated
  • Weight: Fixture approx. 43 kg; with yoke ~46 kg
  • Output: 555,250 lux @ 1 m (5600K); 22,210 lux @ 5 m (5600K)
  • Dimming: 0.1% increments, flicker-free for very high frame rates
  • FL-45-E Fresnel Lens
  • Lantern Softbox 120cm
  • Parabolic Softbox 120cm
Kit includes:
  • 5000W Fixture head
  • Protective Lens Cap
  • Yoke
  • AC power cable
  • 30° Reflector
  • Wired Controller
  • Flight Case
Specifications:
  • Colour Temperature: 2700K–6500K (+/‑ 80 G/M)
  • CRI / TLCI: ~97 / ~98
  • Rated Power: 5000W (200V–240V) / 5200W (100V–125V)
  • Beam Angle: ~95° (without modifier)
  • Housing: Magnesium alloy, IP66 rated
  • Weight: Fixture approx. 43 kg; with yoke ~46 kg
  • Output: 555,250 lux @ 1 m (5600K); 22,210 lux @ 5 m (5600K)
  • Dimming: 0.1% increments, flicker-free for very high frame rates
Accessories on request:
  • FL-45-E Fresnel Lens
  • Lantern Softbox 120cm
  • Parabolic Softbox 120cm
